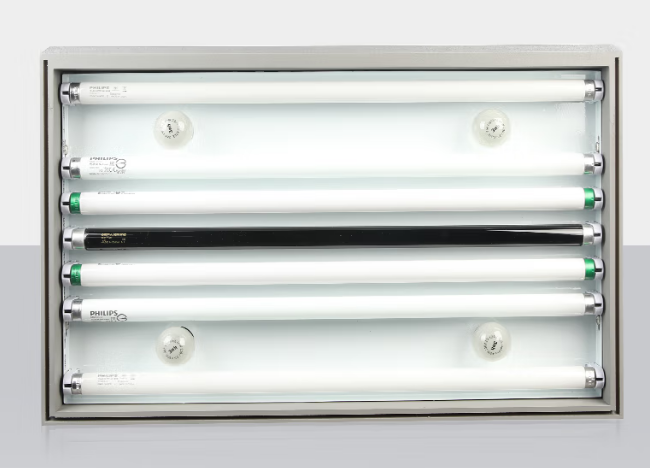

準則光線箱從結構類型上講講，是由準則光線燈管和機柜形成的。因此，準則光線箱的光線有哪種？對色燈箱廣告燈管產品型號有哪種呢？本文作者去了簡易工作小結。
標準光源箱的光源有哪些？

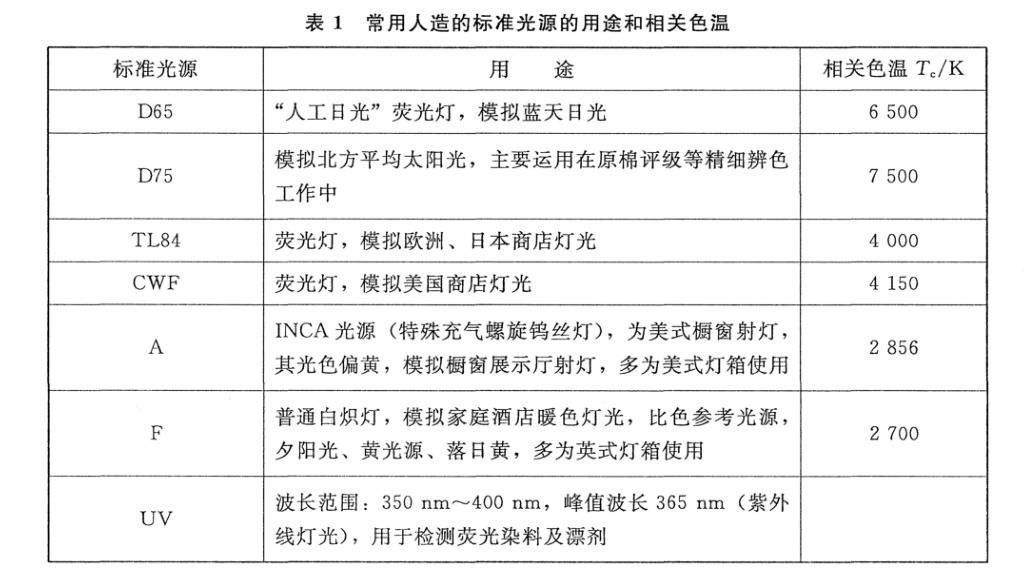

對色廣告燈管核心能夠 按照明的類別來辯別，可用的對色廣告照明有D65、TL84、CWF、U30、UV、F/A等類別。熟悉照明箱照明的色溫及妙用下面的：
對色燈箱燈管型號有哪些？
有差異的點面光源安全使用的燈管毫無疑問也是不不一樣的的。對色戶外燈箱的行業最經種類的燈管牌子便有3nhlighting、飛利普Philips、喜萬年SYLVANIA、格林達-麥克貝斯GretagMacbeth等，之下選擇那種長用點面光源來介召。
D65燈管形號
PHILIPS TLD18W/965 MADE IN HOLLAND 60cm 通常用
GRETAGMACBETH 6500K F20T12/65 MADE IN CANADA 60cm 使用
VeriVide Artificial Daylight F20T12/D65 MADE IN E.E.C. 60cm 長用
PHILIPS TLD36W/965 MADE IN HOLLAND 120cm
GRETAGMACBETH 6500K F40T12/65 MADE IN CANADA 120cm
VeriVide Artificial Daylight F40T12/D65 MADE IN EU 120cm
PHILIPS TLD58W/965 MADE IN HOLLAND 150cm
MACBETH SPL III 專屬D65 750W 120V
SYLVANIA F20T12/D65 ARTIFICIAL DAYLIGHT MADE IN GERMANY 60cm
OARAM L18W/965 BIOLUX Recyclable Germany 60cm
OARAM L30W/965 BIOLUX Recyclable Germany 90cm
PHILIPS Graphica Pro 18W/965 MADE IN HOLLAND 60cm
PHILIPS Graphica Pro 58W/965 MADE IN HOLLAND 150cm
TL84燈管尺寸
PHILIPS TLD18W/840 MADE IN THAILAND 60cm 較為常用
PHILIPS MASTER TLD18W/840 Made in Holland 60cm
PHILIPS MCFE 20W/840 P15 MADE IN POLAND 60cm Marks&Spencer規定
VeriVide F18T8/840P15 MADE IN EU 60cm
PHILIPS T20T12/41U U.S.A. 60cm
PHILIPS TLD30W/840 MADE IN THAILAND 90cm
PHILIPS TLD36W/840 MADE IN CHINA 120cm
PHILIPS TLD58W/840 MADE IN THAILAND 150cm
PHILIPS MCFE 40W/840 MADE IN POLAND 120cm Marks&Spencer制定
OSRAM L36W/840 LUMILUX Germany 120cm
CWF燈管規格
PHILIPS TLD18W/33 Made in HOLLAND 60cm 通用
GE F20W/33 MADE IN HUNGARY 60cm
SYLVANIA F20T12/CWCANADA 60cm
SYLVANIA F20T12/CW USA 60cm
SYLVANIA F20T12/33-640 MADE IN GERMANY 60cm
SYLVANIA F30T8/CW USA 90cm
PHILIPS TLD36W/33-640 MADE IN CHINA 120cm
GE F30W/33 Made IN Gt.Britain 90cm
GE F40W/33 MADE IN HUNGARY 120cm
SYLVANIA F40T12/33-640 MADE IN GERMANY 120cm
UV燈管規格型號
GE F20 BLB USA 60cm
PHILIPS TLD18W BLB MADE IN HOLLAND 60cm
SYLVANIA F18W/BLB-T8 CH 60cm
SYLVANIA F18W/BLB-T8 Made in Japan 60cm
SYLVANIA F30W/BLB-TB Made in Japan 90cm
GE F40 BLB USA 120cm
SYLVANIA F6W/BLB-T5 Made in Japan
U30燈管規格型號
PHILIPS F20T12/30U 3000K U.S.A. 60cm
PHILIPS F30T12/30U/RS 3000K U.S.A. 90cm
F/A燈主要參數
F燈
GE 40W 220V 螺口
GE 40W 220V 卡口 VeriVide CAC60 通用型
INCA A燈
inca 120V 75W Macbeth Judge II 特用
illuminant A 120V 150W Macbeth SPL III 上用
HalogenA 60W 230V 中式吸塑燈箱特用
Horizon(HOR)
SYLVANIA 120V 500W Macbeth SPL III常用
